Description
EVERY CAPTAIN NEEDS A CO-PILOT

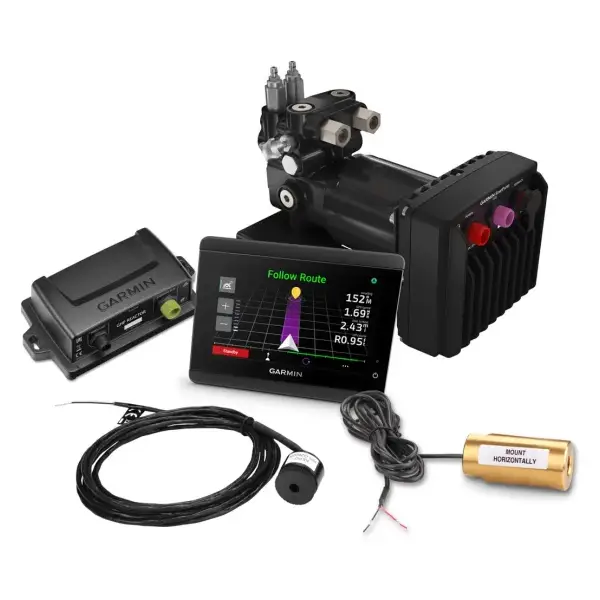

Designed for powerboats, this Reactor 40 hydraulic corepack with SmartPump gives you the extra hand you need, so you can explore paradise worry-free.
This Reactor 40 corepack is the perfect companion for your hydraulically steered system.
Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere.
Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course.
You just want to get on the water, so we made calibration fast and easy. That’s the power of simple.
Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat.
Want more? The optional GHC™ 50 autopilot instrument enhances your autopilot experience.
CCU Specifications
- Dimensions: 3 19/32″ diameter (91.4 mm)
- Weight: 5.6 oz (159 g)
- Temperature range: From 5°F to 131°F (from -15°C to 55°C)
- Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
- CCU cable length: 9.5 ft (3 m)
- NMEA 2000 power input: 9-16 V
- NMEA 2000 LEN: 3 (150 mA)
Buzzer/Alarm Specifications
- Dimensions (L x Diameter): 29/32″ x 1″ (23 mm x 25 mm)
- Weight: 2.4 oz (68 g)
- Temperature range: from 5°F to 131°F (from -15°C to 55°C)
- Cable length: 10 ft (3.0 m)
- Dimensions (W x H x D): 7.5″ x 7.75″ x 9.625″ (19 x 19.7 x 24.4 cm)
- Weight: 16.5 lbs (7.5 kg)
- Temperature range: From 5°F to 131°F (from -15°C to 55°C)
- Material: Electronics Control Unit (ECU) – fully gasketed, aluminium alloy; bracket – carbon steel; manifold – aluminium alloy; motor – aluminium alloy
- Power cable length: 9 ft (2.7 m)
- Power input: 11.5-30 Vdc
- Fuse: 40 A, blade-type
- Main power usage: standby – less than 1 A; engaged – 5-10 A; peak – 34 A
- Flow rate: Configurable from 0 to 2.4 L per minute
- Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in
