Description
STRIKINGLY POWERFUL RADAR

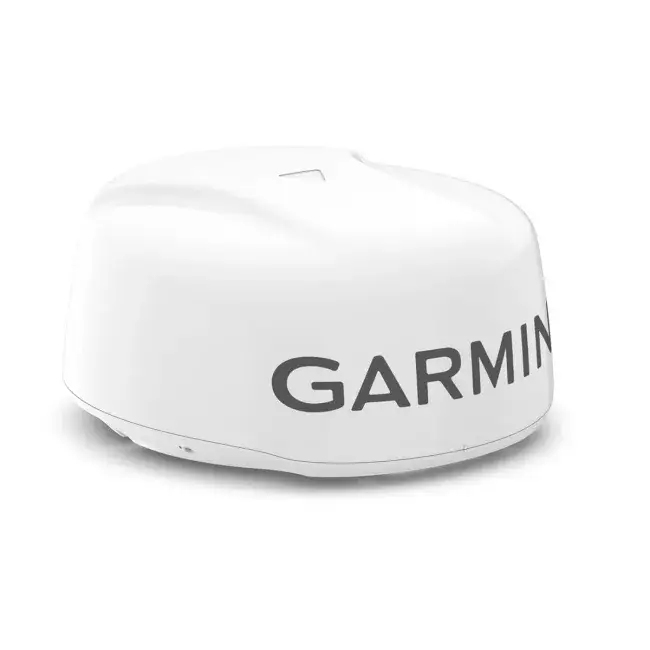

These incredibly powerful 18″ and 24″ dome radars have beauty and brains with a black colour option and 50 watts of output power.
GMR Fantom brings the power. Fifty watts of it, actually.
See targets clearly, and adjust their sizes as needed.
With power save mode, you get to choose when to use full power and when to pull back.
Every second of power usage counts. Cut back even more by choosing your active times down to the second.
MotionScope™ technology shows targets in colour as they move toward you or away.
General
| DIMENSION | 18x: 20″ x 9.80″ (50.80 x 24.90 cm) 24x: 25.40″ x 9.80″ (64.50 cm x 24.90 cm) |
| WEIGHT | 18x: 14.0 lbs 24x: 17.40 lbs |
| WATER RATING | IPX7 |
| ANTENNA LENGTH | 18x: 17″ (43.18 cm) 24x: 23″ (58.42 cm) |
| Rotation speed (RPM) | Up to 60 rpm, depending on settings |
| Beam width | 18x: 5.20° horizontal, 25° vertical 24x: 3.70° horizontal, 25° vertical |
| Maximum range | 48 NM |
| Minimum range | 6 metres |
| Radar type | Radome |
Electrical features
| POWER INPUT | 10-32 V DC |
| Power Consumption (standby) | 4 W |
| Max power consumption, transmitting (power save) | 24 W |
| Max power consumption, transmitting (normal mode) | 33 W |
| Transmit power | 50 W |
Radar Features
| DUAL RANGE | ✔️ |
| Overlay | ✔️ |
| Dual radar support | ✔️ |
| Auto Bird Gain | ✔️ |
| Auto Gain | Dynamic |
| MARPA target tracking | Yes (requires heading sensor, sold separately) |
| Echo Trails | ✔️ |
| MotionScope | ✔️ |
| Target size | ✔️ |
| Scan averaging | ✔️ |
- GMR Fantom 18x or 24x Dome Radar(depending on model selected)
- Power cable (15 m/49.21 ft)
- Network cable (15 m/49.21 ft)
- Network adapter cable (GMN 2.0 Small to GMN)
- Installation instructions
- Mounting hardware kit and template
- Garmin Marine Network adapter cable (small connector to large connector)
