Description
SURRENDER TO THE SOUND

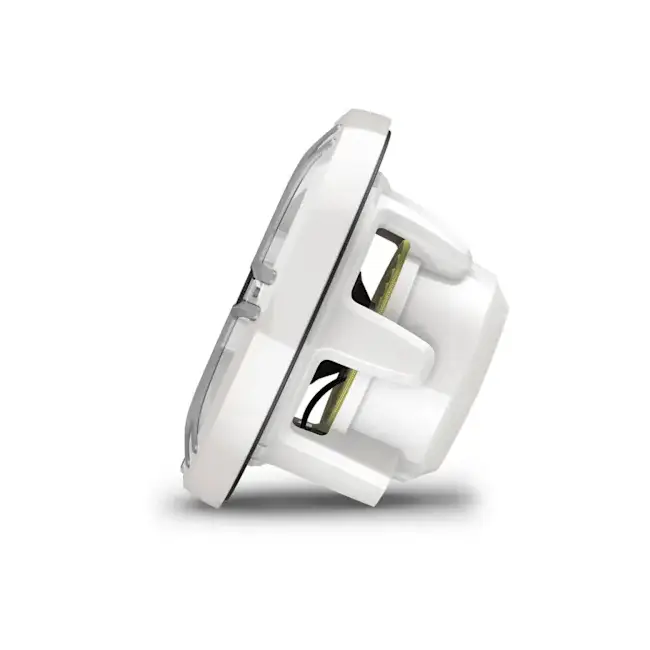

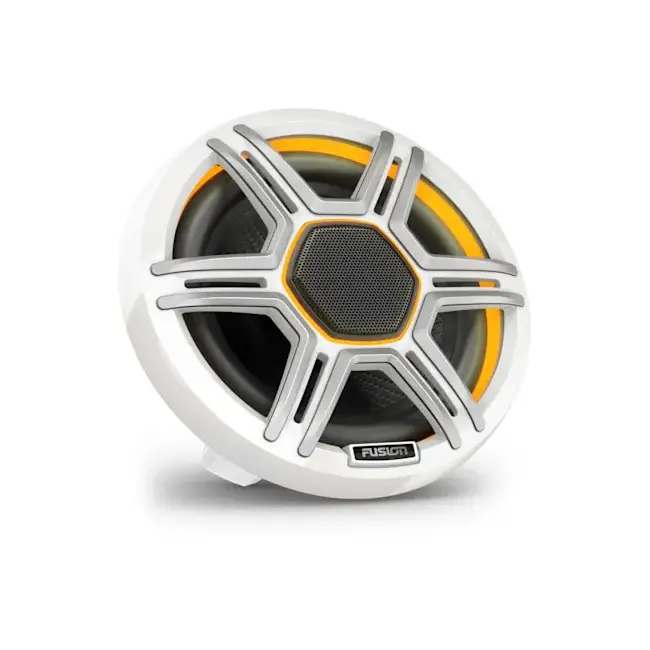

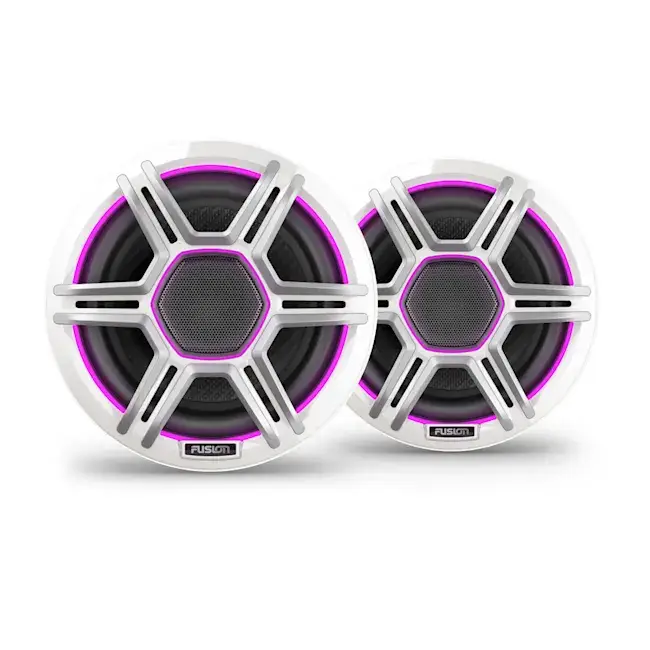

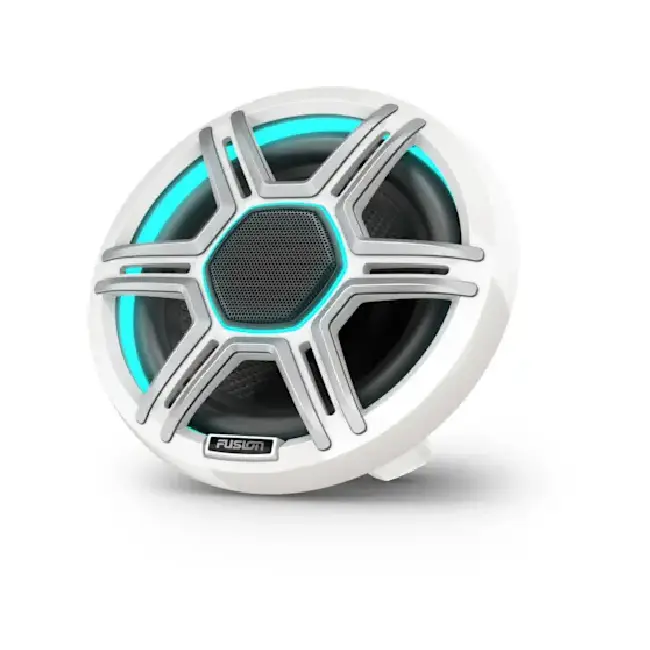

Fusion Apollo coaxial marine speakers deliver immersive, high-fidelity audio on the water and are engineered to withstand harsh marine conditions.
CRYSTA-CLEAR PREMIUM SOUND QUALITY
INCLUDED INTERCHANGEABLE SPORTS WHITE OR SPORTS GREY GRILLES
MATCH THE MOOD WITH DUAL-HUE LED LIGHTING RINGS
AVAILABLE IN 6.5″, 7.7″ AND 8.8″ SIZES
RIGOROUSLY TESTED MARINISED DESIGN
General
| SIZES | 6.5″/7.7″/8.8″ |
| COLOUR | Sports White or Sports Gray |
| PHYSICAL DIMENSIONS (DIAMETER) | 6.5″: 176 mm (6.93″) 7.7″: 196 mm (7.72″) 8.8″: 224 mm (8.82″) |
| PHYSICAL DIMENSIONS (DEPTH) | 6.5″: 103.1 mm (4.06″) 7.7′: 113.2 (4.46″) 8.8″: 134.1 (5.28″) |
| WEIGHT | 6.5 kg (” Ibs) 7.7 kg (” Ibs) 8.8 kg (” Ibs) |
| WATER AND DUST RATING | IP66/IP67 |
| SPEAKER TYPE | Coaxial |
| CONTINUOUS POWER HANDLING (RMS) | 6.5″: 75 W 100 W 8.8″: 130 W |
| SENSITIVITY (SPL@ 1 W/1 M) | 6.5: 90 dB 7.7″/8.8″: 91 dB |
| FREQUENCY RESPONSE (+/- 3 DB) | 6.5″: 70 Hz-22 kHz 7.7″: 60 Hz-22 kHz 8.8″: 50 Hz-20 kHz |
| NOMINAL IMPEDANCE | 40 |
| RECOMMENDED AMPLIFIER POWER (RMS) | 6.5″: 25-150 W/Channel 7.7: 30-200 W/Channel 8.8″: 40-260 W/Channel |
| LED LIGHTING | Yes – CRGBW (5 colours) |
| LED SUPPLY VOLTAGE | 10.8-16 VDC |
| LED LOAD CURRENT @ 14.4 VDC (MAX) | 6.5″: 130 mA per colour, per speaker 7.7″: 140 mA per colour, per speaker 8.8″: 180mA per colour, per speaker |
| OPERATING TEMPERATURE RANGE | 0° to 50° C (32° to 122° F) |
| CONE MATERIAL | CURV Cone Technology with rubber surround |
| TWEETER TYPE | Silk dome |
| TWEETER SIZE | 25 mm (16.5) 25 mm (17.7) 8.8″: 32 mm (1.25″) |
| WARRANTY | 3 years |
Electrical features
| Compass safe distance | 6.5″: 280 cm (9.19 ft) 7.7″: 300 cm (9.84 ft) 8.8″: 315 cm (10.33 ft) |
Connections
| Speaker connections | 150 mm (5.9″) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors 6.3 mm (0.25″) positive and 4.8 mm (0.19″) negative) |
| LED connection | 150 mm (5.9″) water-resistant 6-way connector (6-pin, CRGBW and ground) |
Mounting Dimensions
| Mounting diameter clearance | 6.5″: 136 mm (5.35″) 7.7″: 156 mm (6.14″) 8.8″: 180 mm (7.09″) |
| Mounting depth clearance | 6.5″: 77 mm (3.03″ ) 7.7″: 86 mm (3.39″) 8.8″: 105 mm (4.13″) |
| Frontal grille protrusion | 6.5″: 30 mm (1.18″) 7.7″: 32 mm (1.26″) 8.8″: 33 mm (1.30″) |
In The Box
- Pair of speakers with sports white or sports grey grilles (based on what you select)
- Pair of audio cables with water-resistant two-way connectors
- Pair of LED cables with water-resistant six-way connectors
- Mounting screws
- Documentation
